Cubicon

Cubicon 3D-Drucker 3D Optimus

Item number 200286
EUR 1,488.66 *
Content 1 piece
Delivery in approx. 2 weeks
* Excl. VAT excl. Shipping

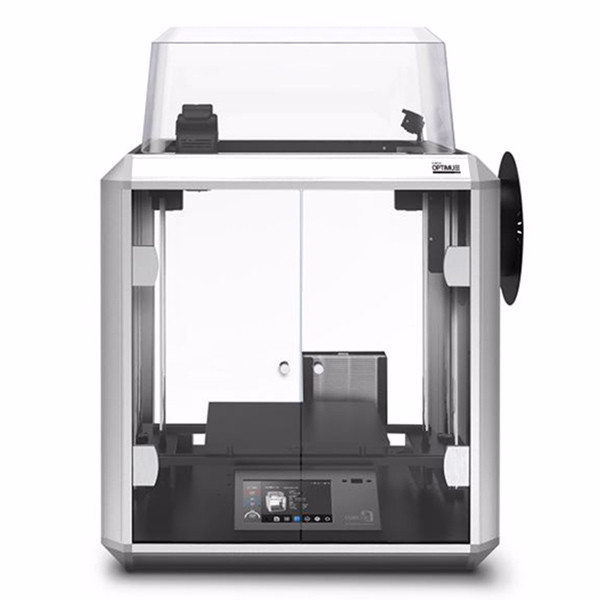

The Cubicon Optimus is a housed FDM printer with a build volume of 230 x 210 x 300 mm. The printer uses a direct drive extruder and has a built-in automatic bed leveling function. For improved Z-axis stability, the printer uses two leadscrews and four vertical axes. Control is via a 5-inch LCD color touchscreen and you can charge models via WiFi or USB port.

The hotend has a maximum temperature of 260°C and the heat bed can be heated up to 110°C. The nozzles are easily replaceable and the housing has a built-in air filter. The printer is also equipped with a power failure recovery feature that allows you to continue printing after a power failure.

Brand: Cubicon
Printing technology: FDM/FFF
Max. printing depth: 23 cm
Max. print width: 21 cm
Max. printing height: 30 cm
Print volume: 14.49 l
CNC option: NO
Laser option: NO
Number of extruders: 1
Heated bed: Yes
Maximum heated bed temperature: 120°C
Bed leveling type: Automatic
Camera: NO
USB: Yes
Network: Yes (WiFi)
Filament diameter: 1.75mm
Dimensions: 48 x 48 x 58 cm (LxWxH)
Input voltage: 100-240V
Weight: 30kg
Manual: Download
Filament sensor: Yes
Extruder: Instant
Maximum extruder temperature: 260°C
Voltage: 24VDC
Item ID 798
Condition New
Age rating 3 and older
Model 200286
Manufacturer Cubicon
Manufacturing country Democratic People's Republic of Korea
Content 1 piece
Weight 33000 g
Net weight 30000 g
Dimensions 480×480×580mm
Customs tariff number 8477.8020
