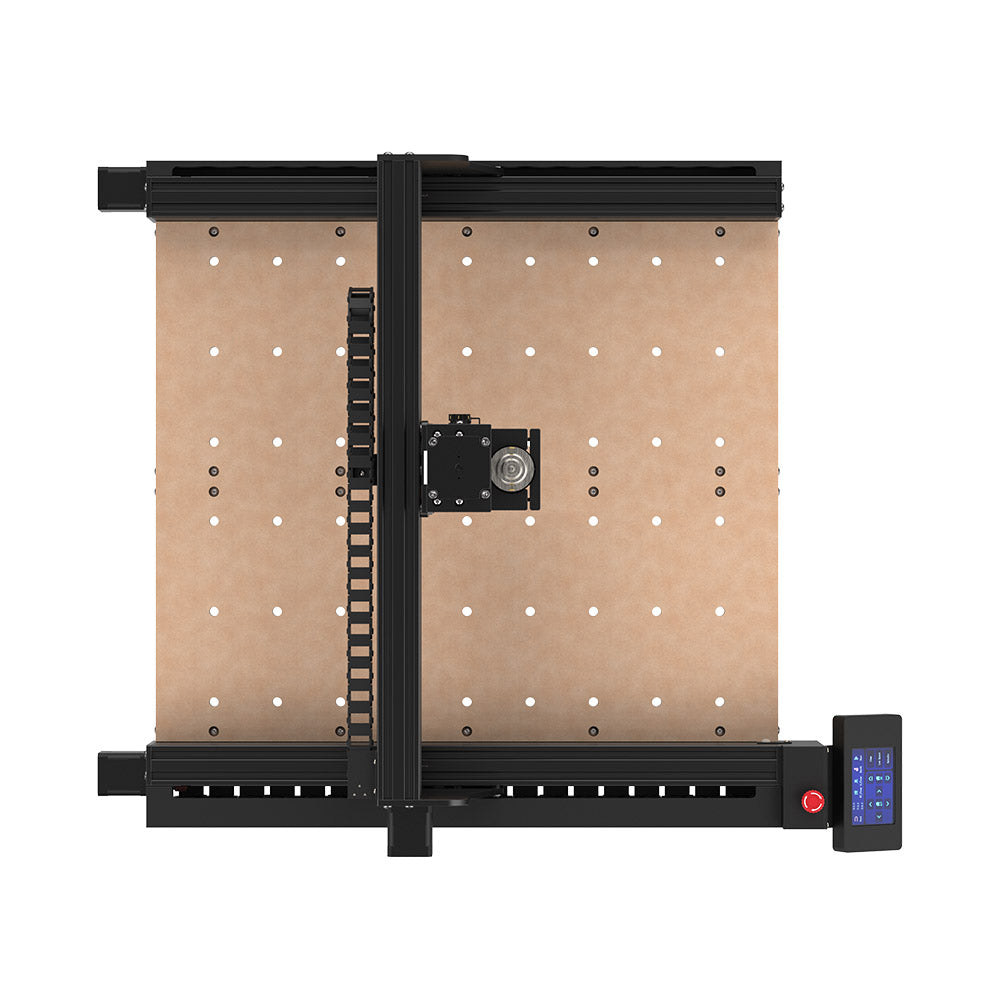

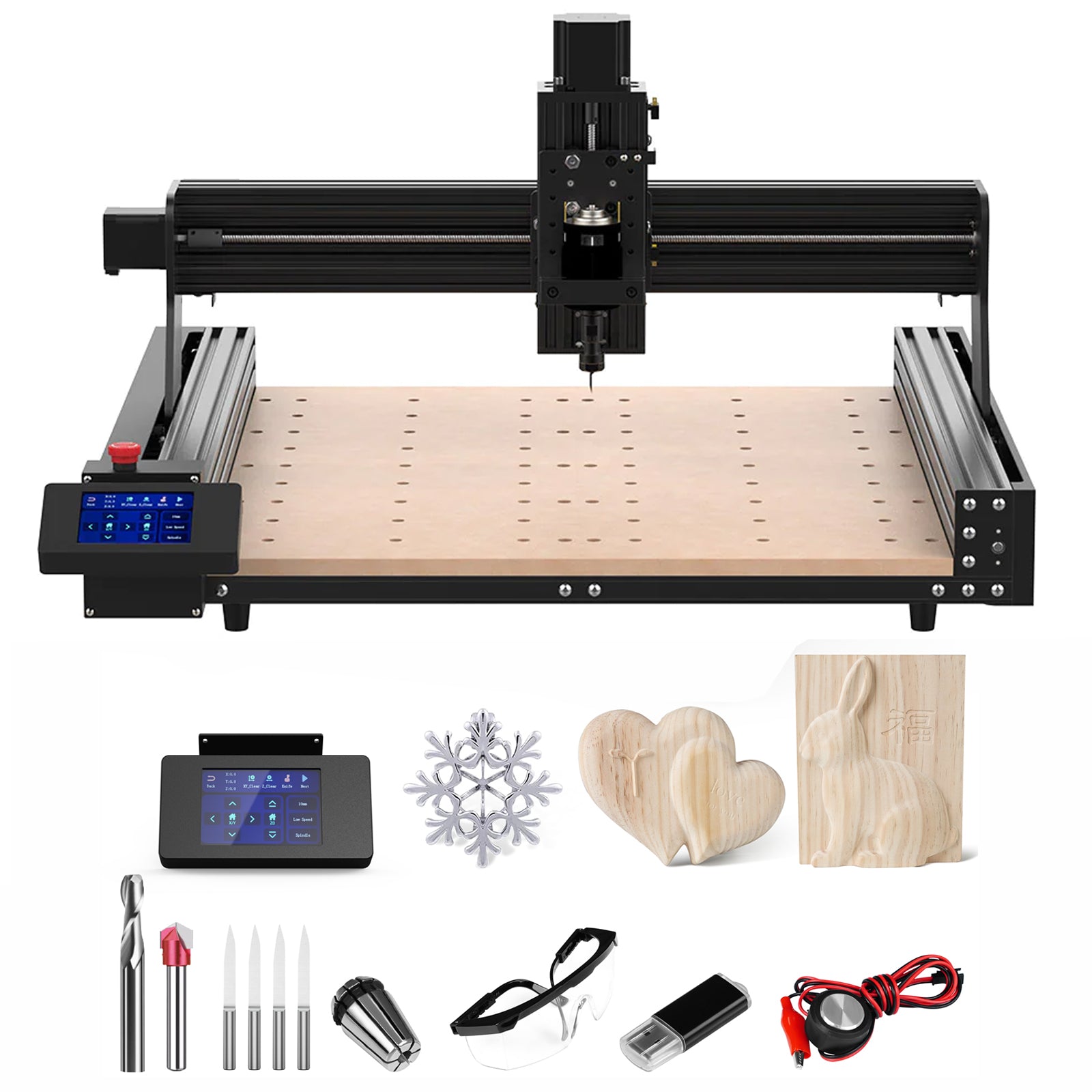

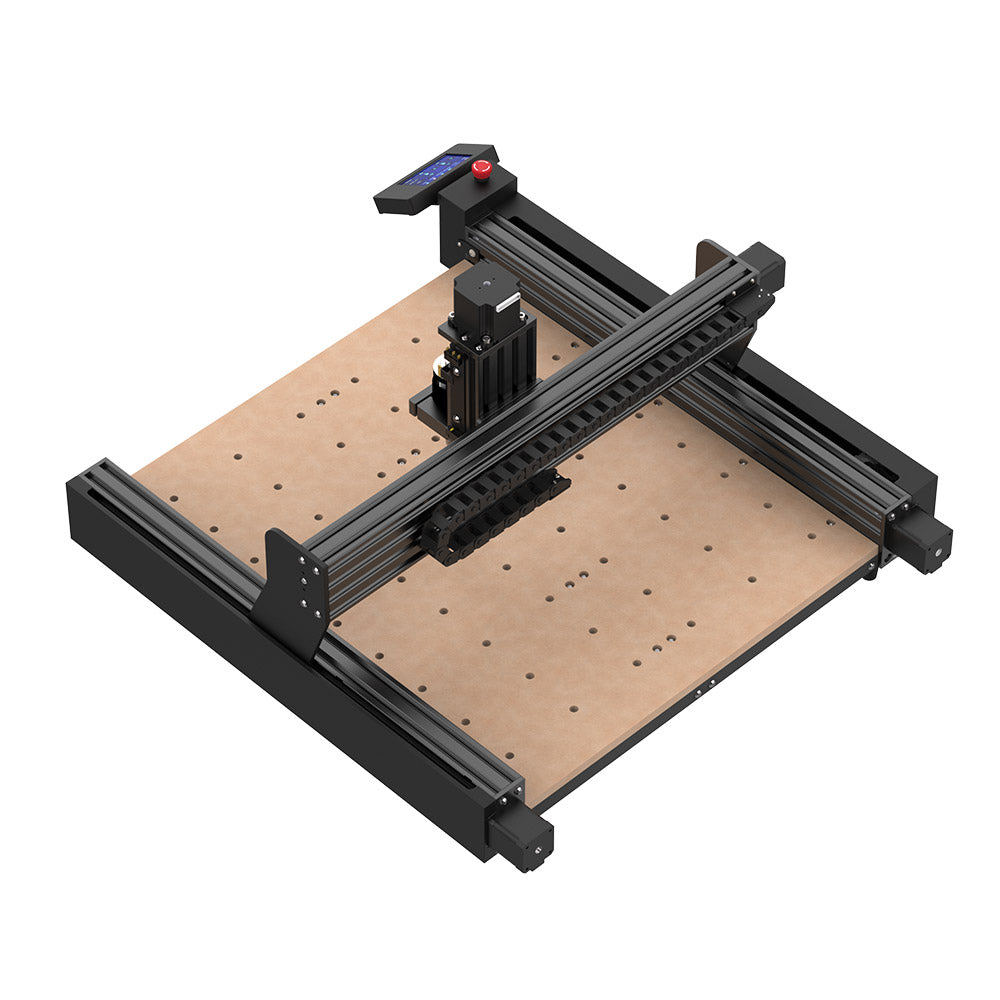

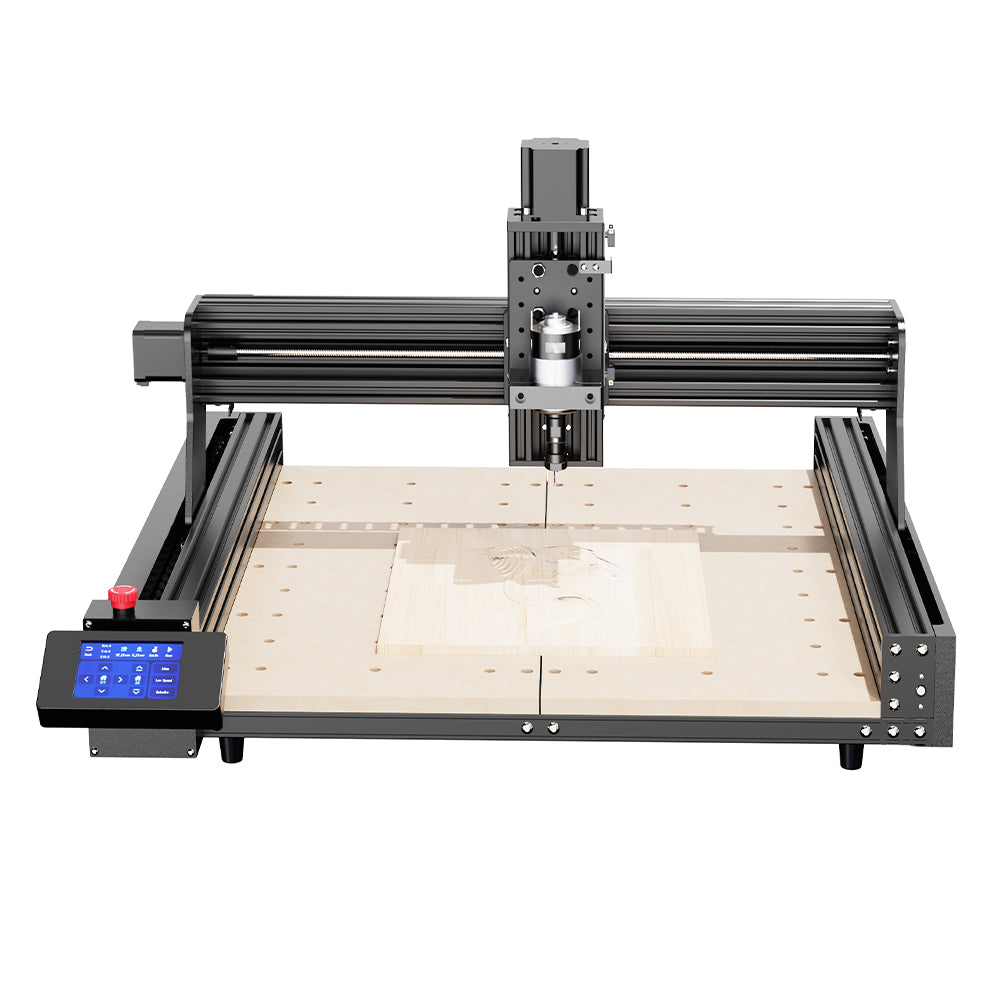

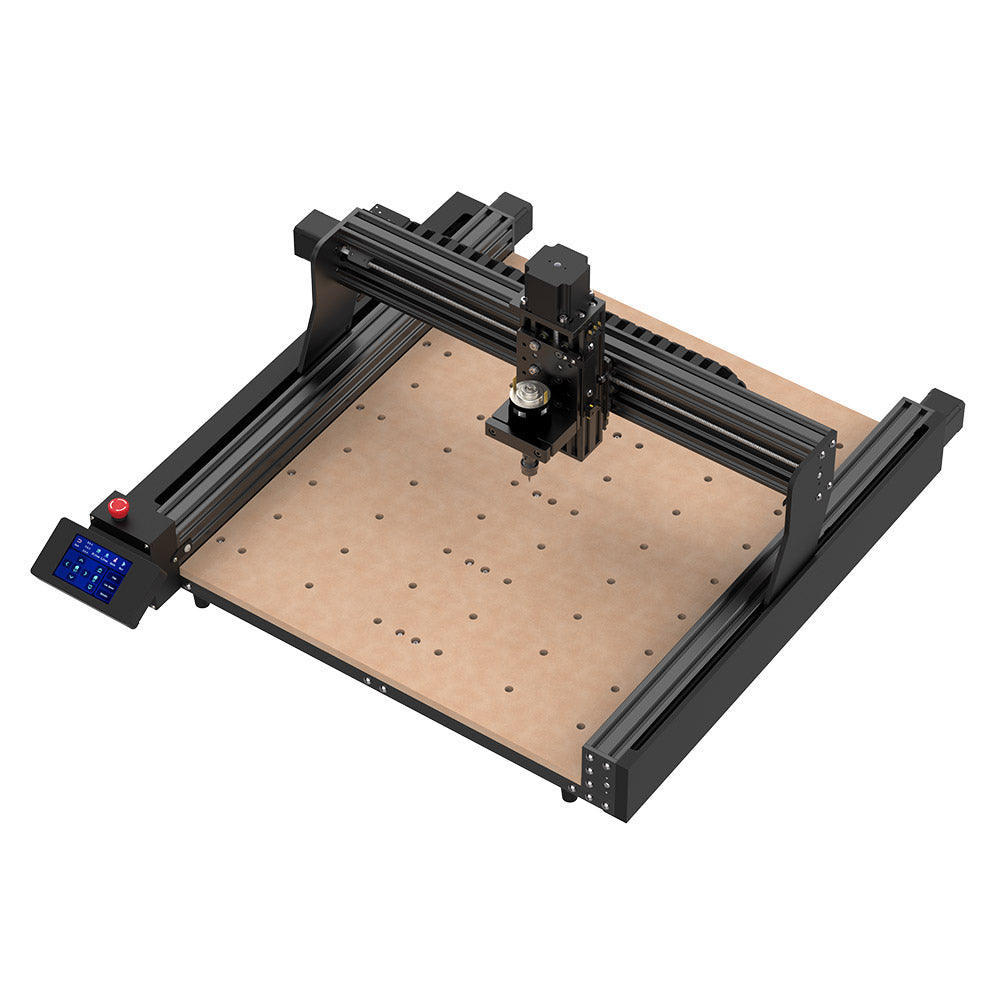

TwoTrees CNC Fräsmaschine TTC450
High-speed spindle
While the standard motor of the TTC450 milling machine reaches a speed of 7,000 rpm with its 80 watts, it achieves 12,000 rpm with an optional 500-watt high-speed spindle. The powerful motor ensures quiet and fast heat dissipation, making engraving smoother.
Large working area
With a working area of 460 x 460 x 80 mm, you can complete most engraving projects. The device can be used for both commercial series production and artistic design purposes.
Robust and durable construction
To ensure its stability during operation, the metal frame of the milling machine is reinforced with high-quality screw rods.
Supports offline engraving
The TTC450 milling machine is easy to connect and operate via an intelligent display. Thanks to a built-in WiFi module, the device can also be controlled via a PC or an app.
Accurate to the millimetre
The milling machine has 3-axis XYZ motion control. Thanks to the end stops on all axes, an engraving accuracy of 0.01 mm is guaranteed.
Versatile applications
Creates 2D and 3D works on a wide range of materials, including plastics, acrylics, industrial plastics, metals, and more.
Device size | 782x670x390mm |
Engraving size | 460x460x80mm |
Weight (net) | 20kg |
Machine material | Aluminium profiles, plastic |
Lead screw size and type | T8, 2mm pitch, 4mm pitch, 5-speed peak lead screw |
Height adjustment method | Automatic lifting module adjustment |
XY axis positioning accuracy | 0.1mm |
Precise engraving | 0.01mm |
Stepper motor | A4988, 1.3A / 17HS8401S, NEMA23 20mN.m |
Engraving speed | 800mm/min |
Spindle | 80W, 8000rpm 500W, 12000rpm (optional) |
Engraving method | USB connection App Website Offline |
Carving material | Plastic, soft aluminium, wood, acrylic, PVC, PVB, among others |
Software recognition format | NC, DXF, BMP, JPG, PNG, GCODE |
Continuous working hours | ≤ 6 hours |
Engraving mode | Graphic engraving, file engraving, scan engraving, contour engraving, pixel engraving |
Control panel | ESP32 32-bit main control board |
Power supply | 24V 5A 120W |
Supported Operating Systems | Windows, macOS |
Support software | Laser GRBL: Open source free software, supports Win XP/Win 7/Win 8/Win 10 system LightBurn: paid software, supports Win XP/Win 7/Win 8/Win 11 system, Mac system |
Language | Mandarin, English, Italian, French, German |
Item ID | 1161 |
Condition | New |
Age rating | 3 and older |
Variation ID | 620202011 |
Model | 200435 |
Manufacturer | TwoTrees |
Manufacturing country | China |
Content | 1 piece |
Weight | 25000 g |
Net weight | 20000 g |
Dimensions | 800×700×400mm |
Customs tariff number | 84778020 |
