TwoTrees

TwoTrees CNC Fräsmaschine TTC-H40


Item number 200438
EUR 1,343.70 *
Content 1 piece
Delivery in approx. 2 weeks

* Excl. VAT excl. Shipping

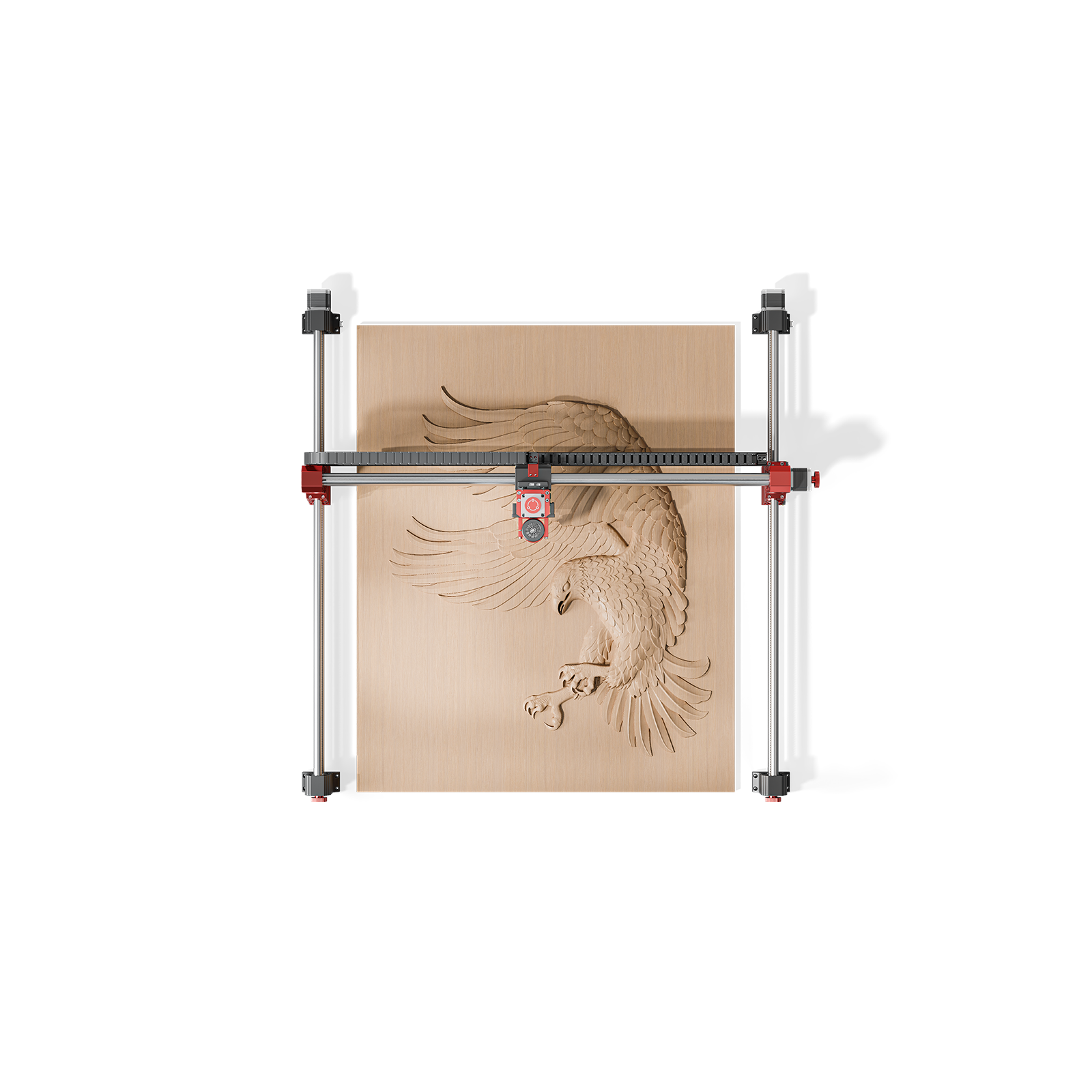

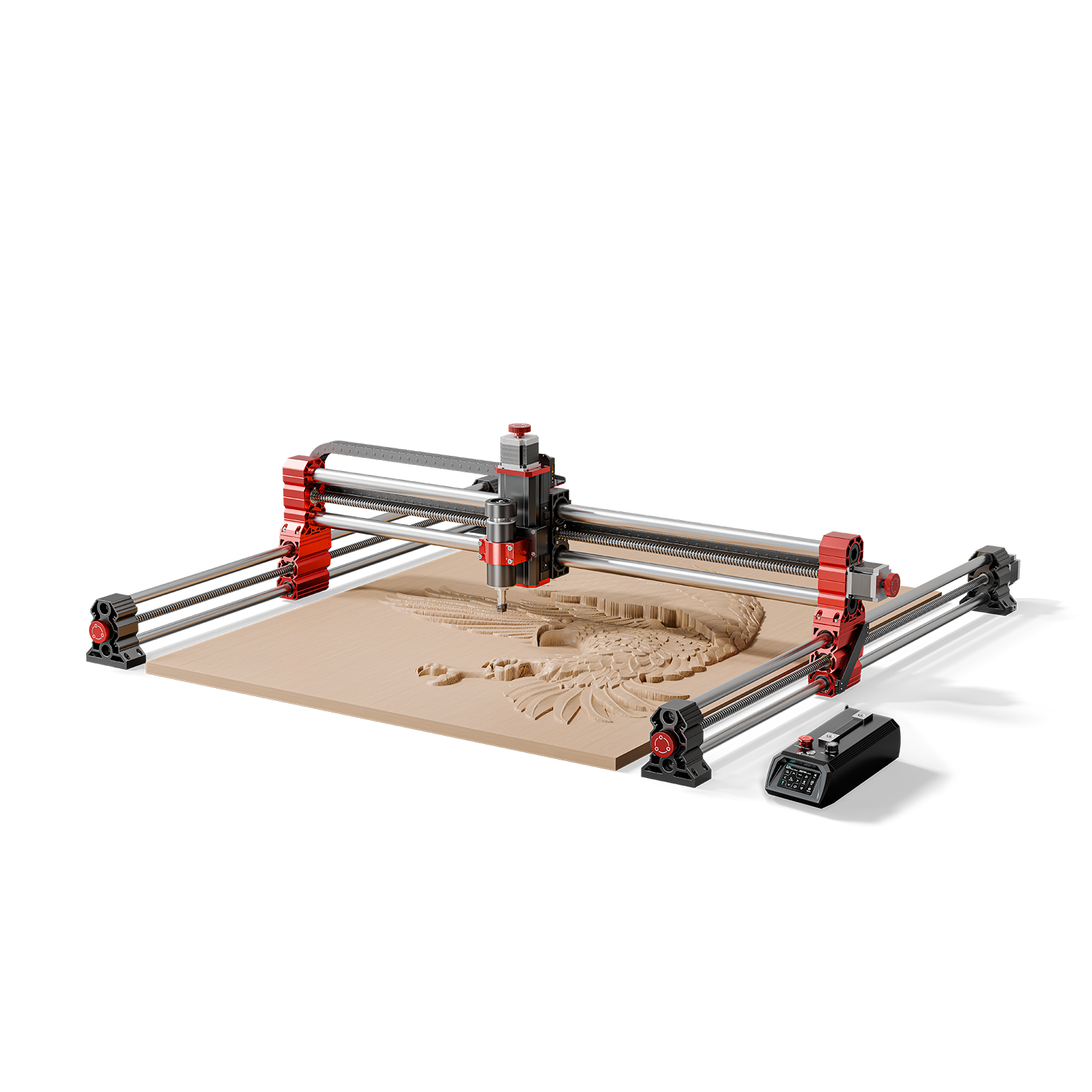

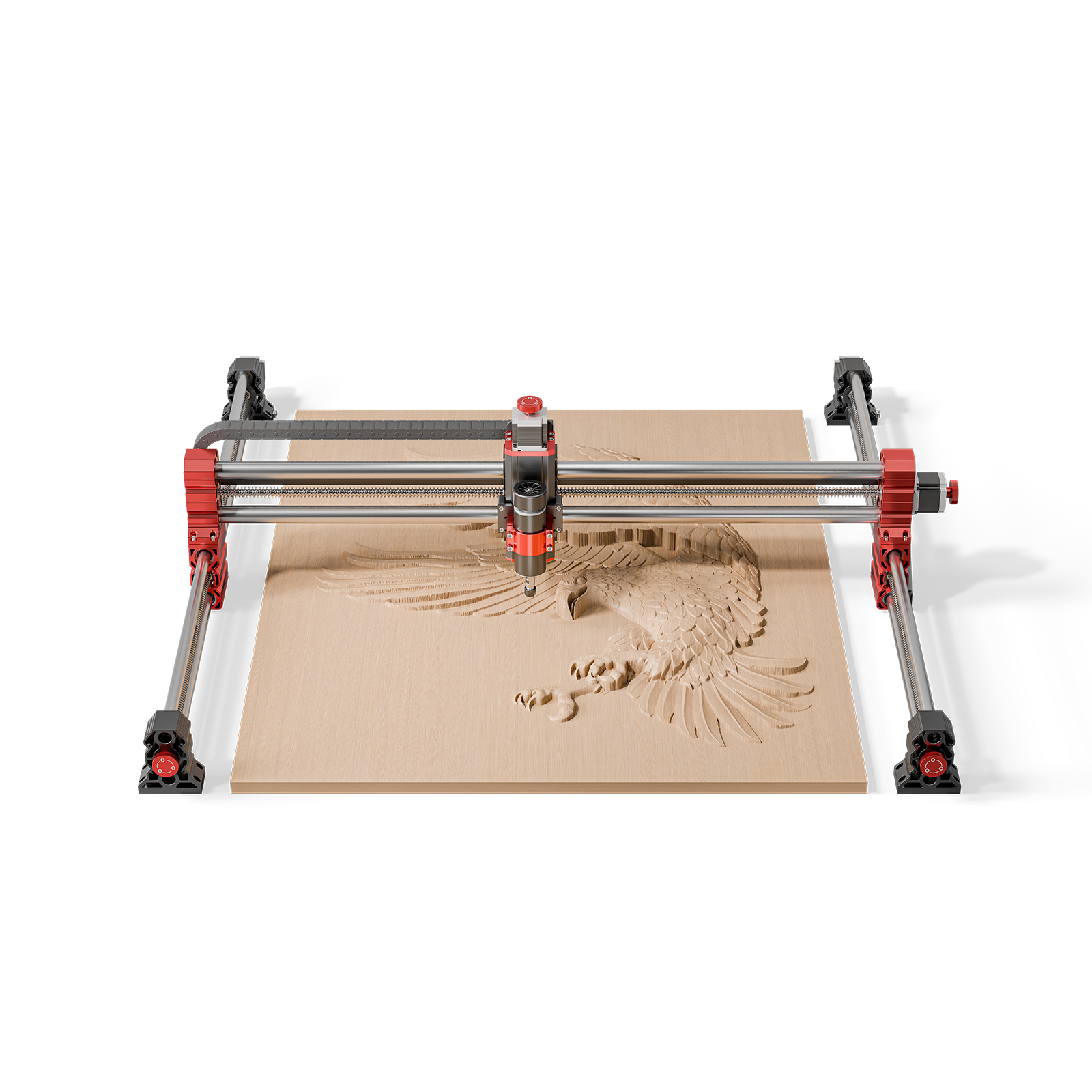

The Two Trees TTC-H40 CNC router is the all-rounder for powerful projects that leave an impression. Large surface area, smart operation and plenty of power - all in one stylish package!

Generous work surface

With an impressive work surface of 1000 x 1000 x 100 mm, the TTC-H40 milling machine offers plenty of space for your ideas. Whether you have medium-sized projects or really big plans, this CNC machine makes it possible and increases your efficiency by up to 300 %!

Thanks to its ability to emboss, add depth and texture, you can conjure up functional one-offs in no time at all - from customised pieces of furniture to detailed decorative objects.

One-click control - CNC meets laser engraving!

The 3.5-inch smart touchscreen makes controlling the TTC-H40 super easy - one click is all it takes to switch between CNC routing and laser engraving!

There's also a clever safety package that lets you work worry-free:

  • Spindle switch-off,
  • Emergency stop switch,
  • Laser protection.

These keep your back free so that you can concentrate fully on your creativity.

Further features:

  • Slim design with clear lines,
  • Simple assembly,
  • Modularly expandable,
  • Compatible with common software (Carveco Maker, Artcam, EASEL, Fusion 360, etc.),
  • Suitable for wood, metal, plastic, acrylic glass, etc.



Device dimensions 1292.5 x 1290.5 x 404.5 mm
Material Aluminium alloy
Work surface 1000 x 1000 x 100 mm
Max. speed 18000 mm/min
Engraving accuracy 100+0.05 mm
CAM software Artcam, Fusion360, EASEL, Carveco Maker
Display 3.5 inch touchscreen
Display functions Motion control, emergency stop button, speed control, laser/CNC switch, voice switching, online help
Spindle 775 brush motor 500W spindle
Engraving method USB, WiFi 2.4 GHz, TF card
Compatible materials Plywood, MDF, solid wood, acrylic glass, carbon fibre, aluminium, copper, stainless steel
Item ID 1164
Condition New
Age rating 3 and older
Variation ID 622400003
Model 200438
Manufacturer TwoTrees
Manufacturing country China
Content 1 piece
Weight 32000 g
Net weight 29000 g
Dimensions 900×800×500mm
Customs tariff number 84778020
